wx: 价格:未填
品牌:WOODHEAD
起订:20
供应:120
发货:3天内

• 工作频率低频
• 接口类型AC/DC
• 绝缘体材质PVC
• 品牌WOODHEAD
• 特性防水
• 线长10000（mm）(mm)
• 芯数3

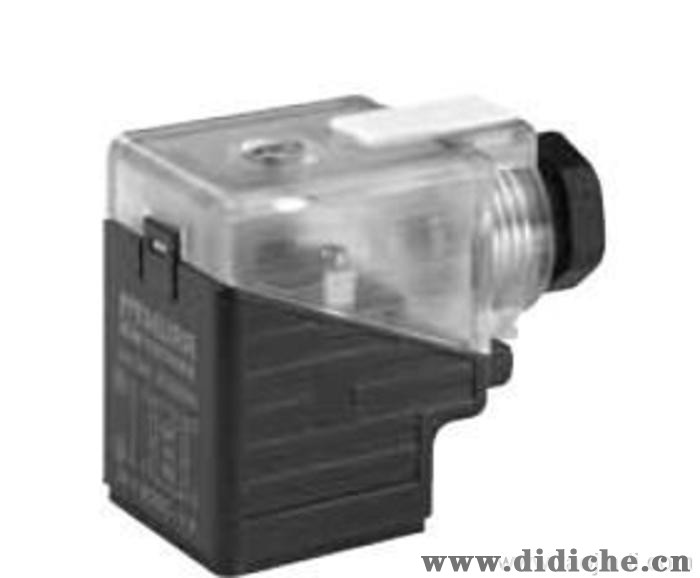

• 型号DND6100
• 形状矩形
• 应用范围汽车
• 针数3
• 制作工艺注塑
• 种类插头/插座
• 接触件材质PVC
• 支持卡数单卡
• 读卡类型其他
• 是否提供加工定制是

产品可选规格

Connector Style: DIN Form A (18mm pin spacing)、 DIN Industrial Form B (11mm pin spacing) 、DIN Form B (10mm pin spacing) 、DIN Form C (8mm pin spacing) 、DIN 'Micro' (9.4mm pin spacing)

Circuit Type: No Circuit、 Lighted (LED) 、Switch Position Indicator (Bi-color LED) 、Surge Protection (VDR) 、Surge Protection (Blocking Diode) 、Surge Protection (Zener Diode) 、Rectifier Circuit + Surge Protection
Circuit: Not Applicable、 LED、 RED/GRN Switch Indicator LED、 YLW/GRN Switch Indicator LED、 VDR only 、VDR + LED 、Blocking Diode only 、Blocking Diode + LED 、Zener Diode、 Zener Diode + LED 、Full Wave Rect + VDR + LED
LED Color: Not Applicable 、Red Green、 Yellow Red/Green、 Yellow/Green
Circuit Voltage: Not Applicable、 24V 、115V 、230V 、24V 、115V 、230V 、24V 、115V 、230V
DIN Head: Form A - Standard (27mm)、 Form A - Ext. Height (34mm) 、Form A with Top Cover (38mm H) 、Ind. Form B 、Ind. Form B、 Form B 、Form B Form C - Standard、 Form MICRO - Standard、 Form A - Standard (H: 27mm) 、Form A - Ext. Height (H: 34mm) 、Form A - Top Cable Entry 、Form A - with Mounting Collar 、Form A - with Captive Gasket & IDC terminals 、Ind. Form B - Standard (H: 30mm) 、Ind. Form B - Ext. Height (H: 34.5mm) 、Ind. Form B - Top Cable Entry、 Ind. 、Form B - with Captive Gasket & IDC terminals 、Form B - Standard (H: 30mm) 、Form B - Ext. Height (H: 34.5mm) 、Form C - Standard Form MICRO - Standard
Head Color: Black Black - UL/CSA Approved Grey Clear
Number of Poles: 2 pole + PE 3 pole + PE
Cable Gland: PG 7 PG 9 PG 11 M12 x 1.5 M 16 M 20 G 1/2" 1/2" NPTF
Gasket & Screw: NBR Profile Gasket + Std Screw NBR Flat Gasket + Std Screw Silicon Profile Gasket + Std Screw Silicon Flat Gasket + Std Screw 参考案例：S022M2TA1D2

SPECIFICATIONS

Mechanical
Contact Carrier - PA
Contact Carrier - Cu alloy
Plating - NiSn
Terminal screw - Cu alloy
Housing - PA-Transparent
Gasket - NBR
Gasket Shape - Flat Gasket
Fixing Screw - Zinc Plated Steel
Cable Diameter Range - 4-6 mm
Max. Wire Conductor cross-section - 1.5 mm2
Electrical
Voltage Rating - 115V AC/DC
Rated impulse withstand voltage - 4 kV
Voltage proof - 2 kV r.m.s.
Nominal Current Rating - 10A
Max. Operating Current - 16 A
Contact Resistance - < 4mOhm
Insulation Class - VDE 0110-1/89
Surge Protection Circuit - Transil (Zener) diode for overcurrent protection. NOTE: for DC AND AC applications
LED - Green Bipolar LED
Environmental
Protection - IP65
Operating Temperature - - 40° C to 90° C
