wx: 价格:未填
品牌:Hirose/广濑
起订:20
供应:871
发货:2天内

• 种类胶壳(housing)
• 接口类型AC/DC
• 特性防潮
• 工作频率高频
• 形状矩形
• 制作工艺冷压
• 芯数1
• 针数1
• 接触件材质磷青铜
• 绝缘体材质尼龙
• 线长-(mm)
• 应用范围汽车
• 型号GT21-1P-DS
• 品牌Hirose/广濑

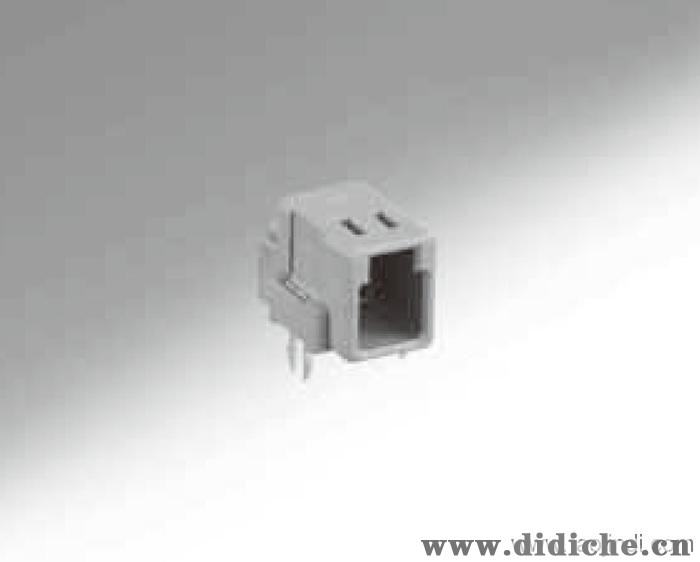

广濑汽车连接器Hirose板端针座GT21-1P-DS一级代理优势库存汽车线板广濑汽车连接器Hirose板端针座GT21-1P-DS一级代理优势库存汽车线板GT21-1P-DS
Product GT21-1P-DS
Series GT21
Connector Type Receptacle
Frequency (Max.) 3 GHz
Number of Positions 1
Mating/Unmating Cycles 30
Detailed Specifications

Last Updated On Sep. 25, 2015
Product information
Part No. GT21-1P-DS
Basic information
Connector Type Receptacle
Frequency (Max.) 3 GHz
Number of Positions 1
Mating/Unmating Cycles 30
Mounting Style THT
Connector Orientation Right angle
Center Contact Plating Tin
Outer Contact Plating Tin
Operating Temperature -30 to 105 ℃
Mechanical Specifications
Plating Thickness 1 μm
Locking Style Latch-lock
Insulation Material PPS
Cable Termination Method (Center Conductor) Crimping
Cable Termination Method (Outer Conductor) Crimping
Electrical Specifications
Contact resistance (center conductor) 30 ｍΩ Max.
Dimensional Information
Connector Length 10.75 mm
Connector Width 15 mm
Connector Height 10 mm
Recommended PCB Thickness 1.6 ｍｍ Max.
Lead Length 3 mm
Packaging Specifications
Packaging Type Bag
Minimum Order Quantity 1 PCS
Mass 1.36 g
广濑汽车连接器Hirose板端针座GT21-1P-DS一级代理优势库存汽车线板石家庄乔氏电子科技有限公司，成立几年以来以其快速发货，超短交期，绝对优势价格屹立于电子元器件销售行列前茅。公司拥有强大货源，和先进系统。在您下单的同时，就能发出货，让您超短时间完成采购任务。代理的品牌包括Hirose、JST、TE、AMP、Molex等几百家世界著名品牌的连接器件。并且保证绝对低价.绝对的原装正品，如有假货，承担一切法律责任。
---------------------------------------------------
华南及西南区域：广东，广西，海南，四川，重庆，贵州，云南请联系我司一部 电话：0311-87367982,
华中华东及西北区域：浙江，江苏，上海，湖北，湖南，安徽，陕西请联系我司市场二部 电话：0311-87367981
华北及东北区域： 北京，天津，河北，河南，山东，山西，辽宁，吉林，黑龙江请联系我司市场三部 电话：0311-89252776
--------------------------------------------------
