wx: 价格:未填
品牌:国产
起订:20
供应:615
发货:2天内

• 额定电流40A
• 额定电压DC3-24V
• 品牌国产

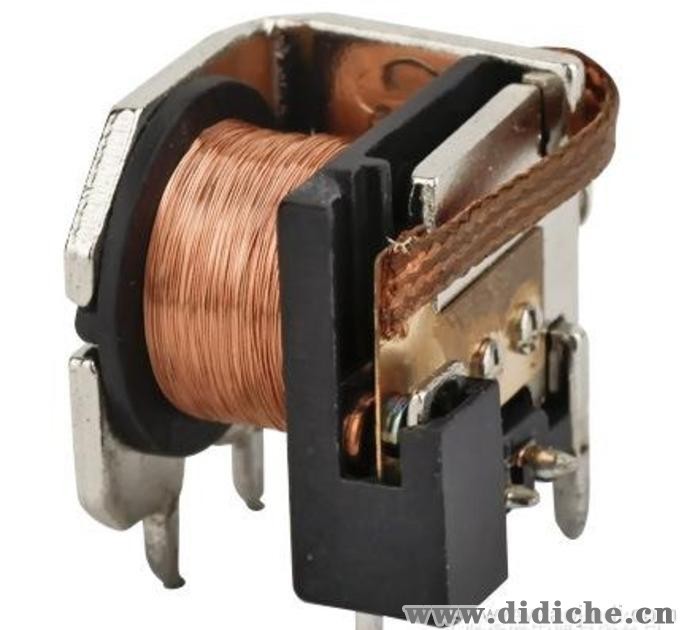

• 型号RWA9
• 应用范围汽车
• 触点形式转换型
• 产品系列RWA9,4119
• 防护特征敞开式
• 触点负载大功率
• 触点切换电压60VDC
• 触点切换电流40A

■ConTACT DATA触点参数Contact Form触点形式1A/1C Contact Material触点材料AgNi/AgSnO Contact Ratings触点负载NO:40A 14VDCNC:30A 14VDCMax Switching Voltage最大转换电压30VDC Max Switching Current最大转换电流40A Max Switching Power最大转换功率560W Contact Resistance接触电阻100mΩMaxat 6VDC 1ALife Expectancy Electrical电气寿命100,000Operations(at30Operations/minute) Machanical机械寿命10,000,000Operations ■GENERAL DATA一般参数 Insulation Resistance绝缘阻值100MΩMinat 500VDCDielectric Strength Between Open Contacts触点间耐压500VAC(for one minute)Between Contacts and coil触点与线圈间耐压750VACfor one minute)Operate Time吸合时间5msRelease Time释放时间4msTemperature Range环境温度-40℃to+70℃Shock Resistance冲击20G,11ms half sine wave pulseVibration Resistance振动10-55Hz,1.5mmHumidity湿度40-85%Weight重量Approx 21gSafety Standard安全标准 ■COIL DATA线圈参数 NominalVoltage额定电压(VDC)Coil Resistance at20±10%(Ω)线圈阻值Max Operate Voltage最大吸合电压VDCMin ReleaseVoltage最小释放电压VDCMax ApplicableVoltage最大过载电压VDC1.6W1.9W35.74.82.250.33.9515.713.23.750.56.5622.5194.50.67.8950.742.76.750.911.7129075.891.215.624360303.2182.431.236810 273.646.8
